Brand Name : Formosa Plastics
Model Number : EVA UE630
Certification : MSDS
Place of Origin : Taiwan, China
MOQ : 25KG
Price : USD1-1.4
Payment Terms : T/T
Supply Ability : 500TONS
Delivery Time : 7-15days
Packaging Details : Plastic bag/Paper bag
Polymer : Copolymer
Material Attribute : Food Contact grade
Packing : 25 kg/pack
Melt Index 2.16kg : 2.5
Port : ShenZhen/GuangZhou,China
Melting Point : 80-110°C
Uv Resistance : Good
Tensile Strength : 10-30 MPa
Application : Shoe Soles, Packaging, Adhesives, etc.
Flame Retardancy : UL94 V-0
Elongation At Break : 200-600%
Color : Transparent
Thermal Conductivity : 0.3-0.4 W/mK
Hardness : Shore A 40-90
Material Type : Ethylene Vinyl Acetate
Chemical Resistance : Excellent
Products Description
| EVA UE630 Transparent Low-temperature Resistant Footwear Foam Food Packaging Resin Raw Materials |
EVA is a thermoplastic polymer material with excellent properties and a wide range of applications. Its high temperature resistance, high strength, chemical resistance, heat resistance and electrical insulation properties make it widely used in the automotive industry, electronics industry, chemical industry and machinery industry. |
EVA | ||
UE630 | ||
Product information | ||
Other Certificates | MSDS | |
Part Marking Code | >EVA< | |
Process | njection molding Extrusion molding Blow molding Compression M Molding | olding Cast molding Foam |
Polymer | Copolymer | |
Material Attrnibute | Food Contact grade | |
Features | High elasticity ·Stress crack resistance ·Low temperature flexibility ·Good processability Non-Toxic -Good flexibility ·High Clarity ·Good moldability | |
Application | Food packaging application -Medical packaging ·Packaging ·Medical devices Medical healthcare applications -Foam ·Profiles ·Sheet ·Footwear ·Shoe material application ·Blow molding applications ·Coextrusion applications Compression molding application -Foam injection molding applications Foaming technologies | |
Certificate | ![]() | |
Physical property | Standard Value | Unit |
Density | ASTM D792 0.937 | g/cm² |
Melt Index | ASTM D1238 1.5 | g/10min |
Viny Acetate Content | NTERNAL METHOD 16 | wt% |
Hardness | Standard Value | Unit |
Shore Hardness A | ASTM D2240 91 | |
Mechanical behavior | Standard Value | Unit |
Tensile Strength Break Molded | ASTM D638 170 | kg/cm² |
Elongation UItimate Molded | ASTM D638 700 | % |
Thermal | Standard Value | Unit |
Vicat Softening Temperature | ASTM D1525 67 | ℃ |
Melting Temperature | ASTM D3418 89 | ℃ |
Low Temperature Brittleness F50 | ASTM D746 -76.0 | ℃ |
product feature
![]() | ![]() |
![]() Optical lighting
It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. | ![]()
It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. | ![]()
It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
![]() | ![]() |

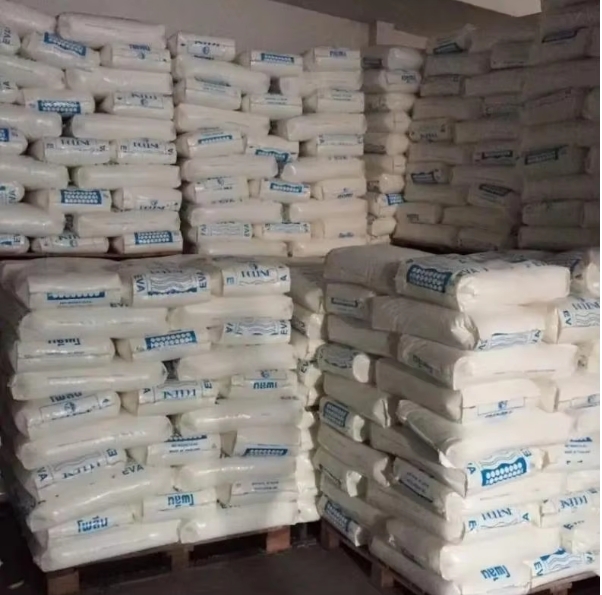

Warehouse:
![]() | ![]() |
![]() | ![]() |
Application | Electronics electrical appliances mobile phones cars |
Grade | Injection Grade,Extrusion Grade |
OEM/ODM | Accepted |
![]() |
Transparent Ethylene Vinyl Copolymer Easy Forming UE630 Eva Resin Material Images |
